ONLINE UPS
We Offer The Most Complete Product ONLINE UPS
This new age,trendy,inexpensive Digital Online UPS system not only gives you a clean sinusodial power but also protects your sensitive and sophisticated office automation equippment for years to come owing to its latest DSP technology.

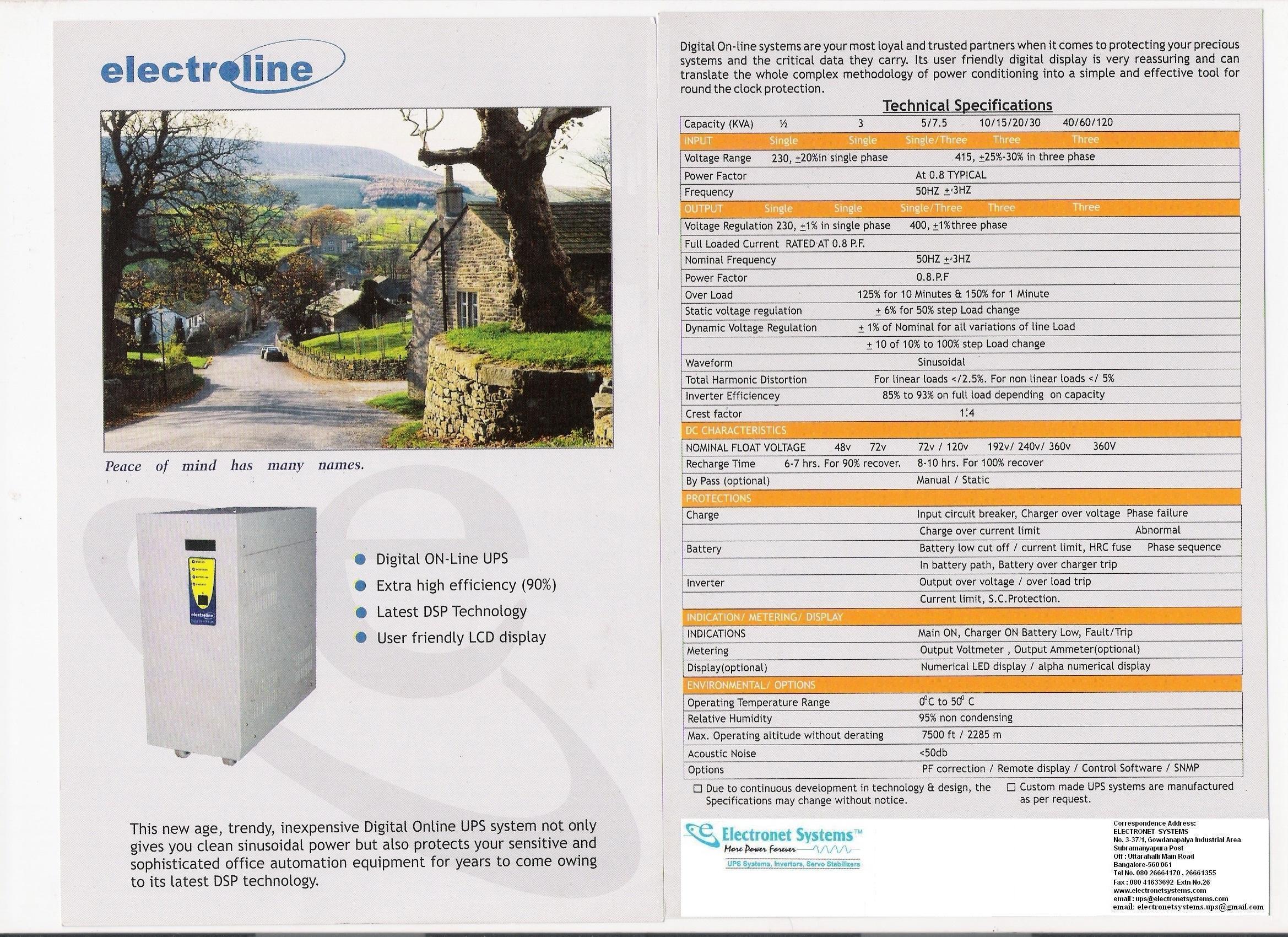

Technical Specification For Online UPS ----Download PDF file
| MODEL | THREE PHASE ONLINE UPS | SINGLE PHASE ONLINE UPS |
|---|---|---|
| INPUT | 300v to 460v Normal Range 250v to 460v Extended Range Frequency : 50Hz ± 3Hz Termination : 4 Wire Systems by terminal block |
160v to 260v Normal Range 140v to 270v Extended Range |
| OUTPUT | 400v±1% Tunable between 380v to 420v Frequency : Same as input waveform distortion Nill correction speed 35v/second protections : High/Low Voltage cut off,Overload,Single phase Preventor,manual by pass |
230V±1% Tunable between 210v - 240v |
| RATINGS | 3kVA to 50KVA Air cooled Above 50KVA oil cooled |
1kVA to 25KVA |
